实验4-基于LSTM+CTC的验证码

1、实验目的

  • 会利用循环网络模型解决序列数据的相关问题

2、实验内容

  • 使用循环网络，自主实现效验码中多个数字字符的识别，并使用深度学习框架完成模型的训练

3、实验步骤

实验一共分为两个实践，第一个实践是CAPTCHA识别实践，第二个实践是基于LSTM+CTC的验证码识别是实践，本次实验第一个实践在CPU上完成，第二个实践则在GPU上完成

3.1 CAPTCHA识别实践

  • 获取数据集

    tqdm用于显示进度条，captcha用于生成验证码数据集，一共生成100000个验证码图片

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    # 获取数据集
    from captcha.image import ImageCaptcha
    from tqdm import tqdm
    import random
    import os

    H, W, C = 100, 120, 3
    N_LABELS = 10
    D = 4

    def generate_captcha_images(datasets_path, num_images, width=200, height=100):
        images_path = os.path.join(datasets_path, 'image')
        if not os.path.exists(images_path):
            os.makedirs(images_path)

        label_file =  open(os.path.join(datasets_path, 'labels.txt'), 'w')
        image = ImageCaptcha(width=width, height=height)
        alphabet = '0123456789'
        for i in tqdm(range(num_images)):
            # 生成随机4位数字的效验码内容
            captcha_text = random.choices(alphabet, k=4)
            label = ''.join(captcha_text)
            # 文件名与输出路径
            image_filename = f'%d.' % i + 'jpg'
            output_path = os.path.join(images_path, image_filename)
            # 保存图片和写入标签
            image.write(label, output_path)
            label_file.write(image_filename + ',' + label + '\n')
        label_file.close()
    1
    2
    # 生成以后将改行设为注释
    # generate_captcha_images('train1', 100000, width=120, height=100)

  • 获取图片对应的标签值

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24

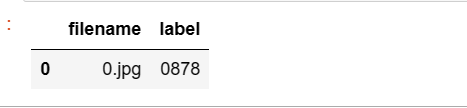

    # 获取图片对应的标签值
    import numpy as np
    import pandas as pd
    import os

    filenames_file = os.listdir('train1/image/')
    label_file = open('train1/labels.txt')

    filenames = []
    labels = []

    for line in label_file:
        line_split = line.strip().split(',')
        filename, label = line_split[0], line_split[1]
        filenames.append(filename)
        labels.append(label)

    # 将文件名和标签一一对应
    df = pd.DataFrame({
        'filename':filenames,
        'label':labels
    })

    df.head(1)

  • 划分训练集和测试集

    按照8训练集：2训练集的比例进行划分

    1
    2
    3
    4
    5
    6
    7
    8
    9
    # 划分数据集
    from sklearn.model_selection import train_test_split

    df_train, df_valid = train_test_split(df, test_size=0.2, random_state=42)
    df_train = df_train.reset_index(drop=True)
    df_valid = df_valid.reset_index(drop=True)

    total_train = df_train.shape[0]
    total_valid = df_valid.shape[0]

  • 构造data_generator

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    # 构造data_generator
    from tensorflow.keras.utils import to_categorical
    from PIL import Image

    def get_data_generator(df, num, for_training, batch_size=16):
        images, labels = [], []
        while True:
            for i in range(num):
                r = df.iloc[i]
                file, label = os.path.join('train1', 'image', r['filename']), r['label']
                im = Image.open(file)
                im = np.array(im) / 255.0
                images.append(np.array(im))
                labels.append(np.array([np.array(to_categorical(int(i), N_LABELS)) for i in label]))
                if len(images) > batch_size:
                    yield np.array(images), np.array(labels)
                    images, labels = [], []
                if not for_training:
                    break

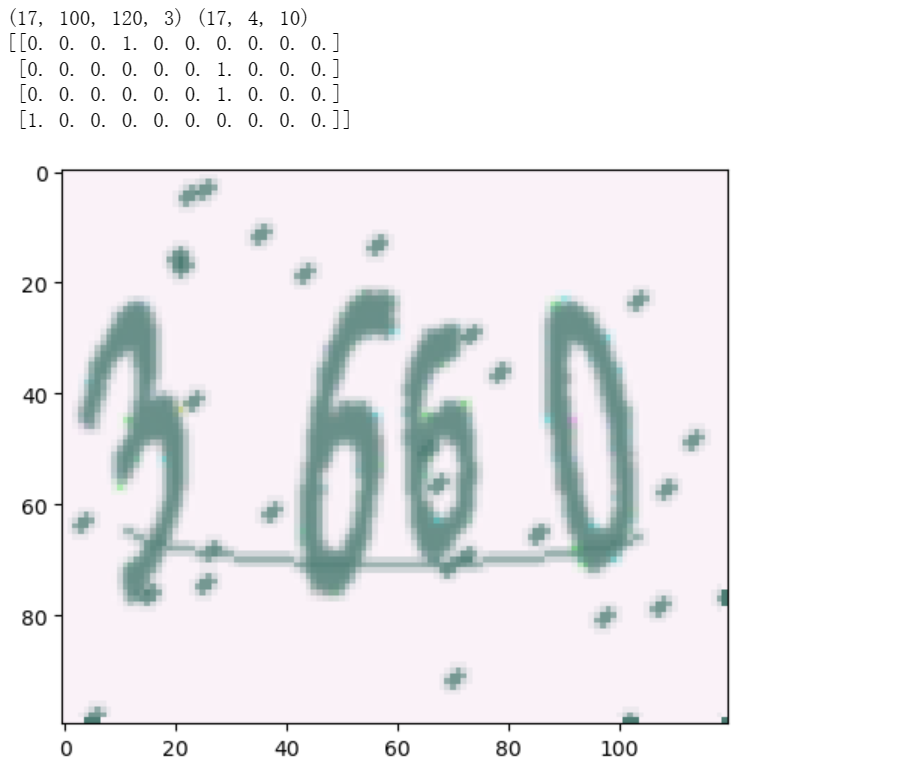

  • 查看所生成的数据样例

    1
    2
    3
    4
    5
    6
    7
    8
    9
    # 查看生成数据样例
    from matplotlib import pyplot as plt

    for v in get_data_generator(df_train, total_train, True):
        X, y = v
        break
    print(X.shape, y.shape)
    plt.imshow(X[0], interpolation='nearest')
    print(y[0])
    1
    2
    3
    4
    batch_size = 64
    valid_batch_size = 64
    train_gen = get_data_generator(df_train, total_train, for_training=True, batch_size=batch_size)
    valid_gen = get_data_generator(df_valid, total_valid, for_training=True, batch_size=valid_batch_size)

  • 构建网络，定义损失函数

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    # 构建网络
    import tensorflow as tf
    from tensorflow.keras import Sequential
    from tensorflow.keras import Input
    from tensorflow.keras.layers import Conv2D, PReLU, MaxPooling2D, Flatten, Dense, Reshape, Softmax

    model = Sequential()

    model.add(Input(shape=(H, W, C)))
    model.add(Conv2D(32, (3, 3)))
    model.add(PReLU())
    model.add(MaxPooling2D((2, 2), strides=2))

    model.add(Conv2D(64, (5, 5)))
    model.add(PReLU())
    model.add(MaxPooling2D((2, 2), strides=2))

    model.add(Conv2D(128, (5, 5,)))
    model.add(PReLU())
    model.add(MaxPooling2D((2, 2), strides=2))

    model.add(Flatten())
    model.add(Dense(D * N_LABELS))
    model.add(Reshape([D, N_LABELS]))

    model.add(Softmax())

    model.compile(optimizer='Adam', metrics=['accuracy'], loss='categorical_crossentropy')

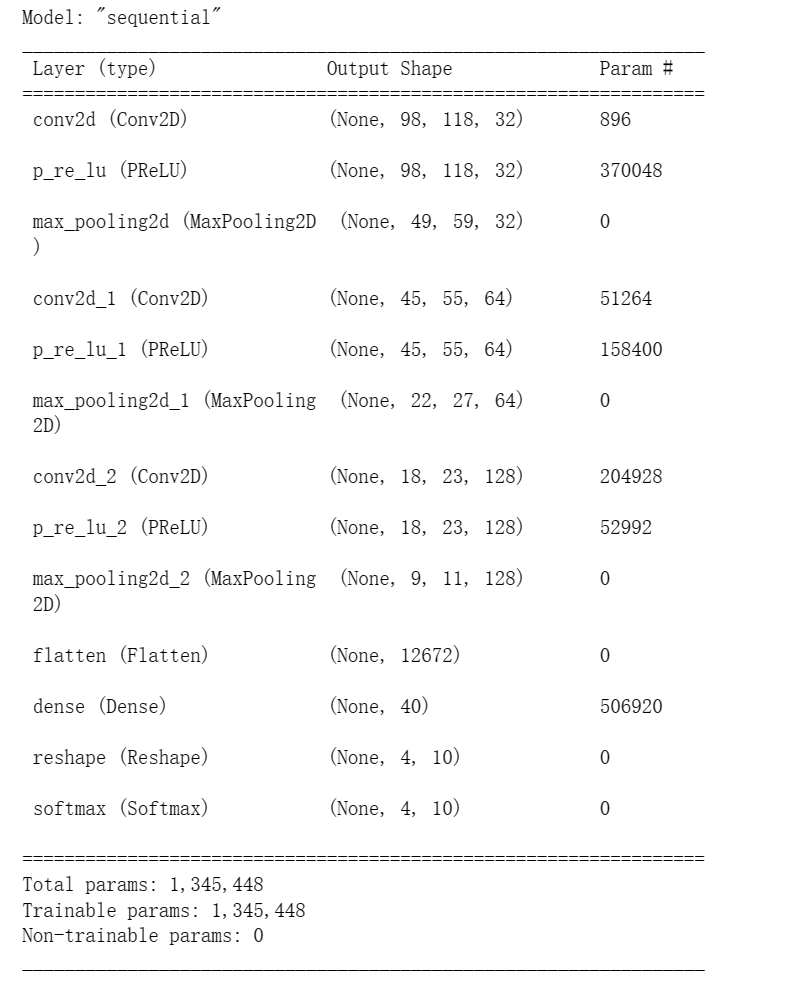

  • 查看网络结构

    1
    model.summary()

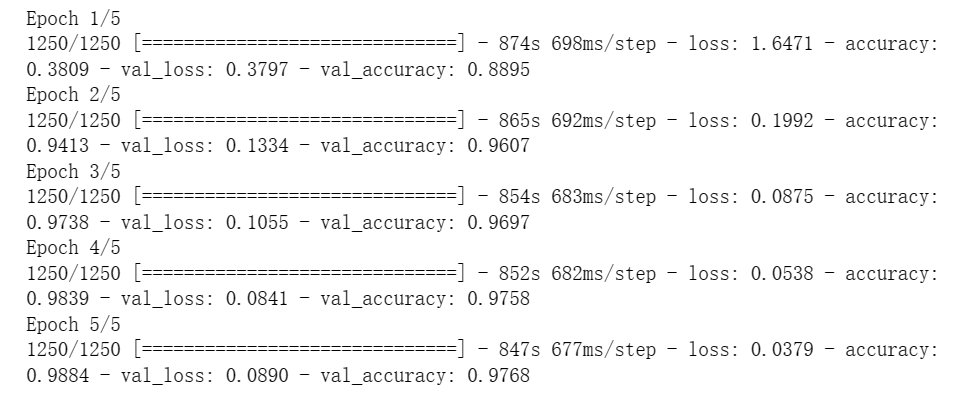

  • 开始训练

    一共完成5个epoches，每个epoches含有1250步

    1
    2
    3
    4
    5
    histort = model.fit(train_gen,
                       steps_per_epoch=total_train//batch_size,
                       epochs=5,
                       validation_data=valid_gen,
                       validation_steps=total_valid//valid_batch_size)

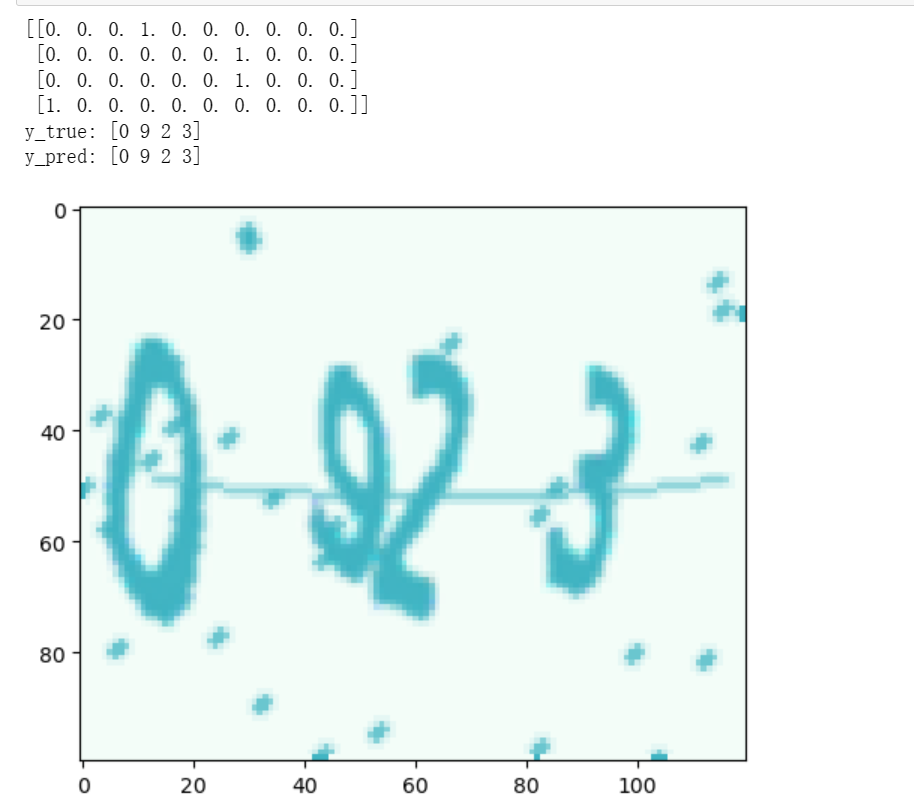

  • 测试验证

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    test = get_data_generator(df_valid, total_valid, True)
    X_test, y_test = next(test)

    plt.imshow(X_test[0], interpolation='nearest')
    print(y[0])

    y_pred = model.predict_on_batch(X_test)
    y_true = tf.math.argmax(y_test, axis=-1)
    y_pred = tf.math.argmax(y_pred, axis=-1)
    print('y_true:', y_true[0].numpy())
    print('y_pred:', y_pred[0].numpy())

3.2 基于LSTM+CTC的验证码识别

  • 导入相关库函数，定义常量

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    # 导入必要的库
    from captcha.image import ImageCaptcha
    from matplotlib import pyplot as plt
    import numpy as np
    import pandas as pd
    import random
    import tensorflow as tf
    import tensorflow.keras.backend as K
    import string

    %matplotlib inline
    %config InlineBackend.figure_format = 'retina'

    characters = string.digits + string.ascii_uppercase
    print(characters)

    width = 128
    height = 64
    n_len = 4
    n_class = len(characters) + 1

  • 定义CTC损失函数

    1
    2
    3
    4
    # 定义CTC Loss
    def ctc_lambda_func(args):
        y_pred, labels, input_length, label_length = args
        return K.ctc_batch_cost(labels, y_pred, input_length, label_length)

  • 定义网络结构

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    input_tensor = Input((height, width, 3))
    x = input_tensor
    for i, n_cnn in enumerate([2, 2, 2, 2, 2]):
        for j in range(n_cnn):
            x = Conv2D(32*2**min(i, 3), kernel_size=3, padding='same', kernel_initializer='he_uniform')(x)
            x = BatchNormalization()(x)
            x = Activation('relu')(x)
        x = MaxPooling2D(2 if i < 3 else (2, 1))(x)
    x = Permute((2, 1, 3))(x)
    x = TimeDistributed(Flatten())(x)

    rnn_size = 128
    x = Bidirectional(GRU(rnn_size, return_sequences=True))(x)
    x = Bidirectional(GRU(rnn_size, return_sequences=True))(x)
    x = Dense(n_class, activation='softmax')(x)

    base_model = Model(inputs=input_tensor, outputs=x)
    1
    2
    3
    4
    5
    6
    labels = Input(name='the_labels', shape=[n_len], dtype='float32')
    input_length = Input(name='input_length', shape=[1], dtype='int64')
    label_length = Input(name='label_length', shape=[1], dtype='int64')
    loss_out = Lambda(ctc_lambda_func, output_shape=(1,), name='ctc')([x, labels, input_length, label_length])

    model = Model(inputs=[input_tensor, labels, input_length, label_length], outputs=loss_out)

  • 生成数据

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    # 数据生成
    from tensorflow.keras.utils import Sequence

    class CaptchaSequence(Sequence):
        def __init__(self, characters, batch_size, steps, n_len=4, width=128, height=64,
                     input_length=16, label_length=4):
            self.characters = characters
            self.batch_size = batch_size
            self.steps = steps
            self.n_len = n_len
            self.width = width
            self.height = height
            self.input_length = input_length
            self.label_length = label_length
            self.n_class = len(characters)
            self.generator = ImageCaptcha(width=width, height=height)

        def __len__(self):
            return self.steps

        def __getitem__(self, idx):
            X = np.zeros((self.batch_size, self.height, self.width, 3), dtype=np.float32)
            y = np.zeros((self.batch_size, self.n_len), dtype=np.uint8)
            input_length = np.ones(self.batch_size)*self.input_length
            label_length = np.ones(self.batch_size)*self.label_length
            for i in range(self.batch_size):
                rand_str = ''.join([random.choice(self.characters) for j in range(self.n_len)])
                X[i] = np.array(self.generator.generate_image(rand_str))/255.0
                y[i] = [self.characters.find(x) for x in rand_str]
            return [X, y, input_length, label_length], np.ones(self.batch_size)
    1
    2
    3
    4
    5
    6

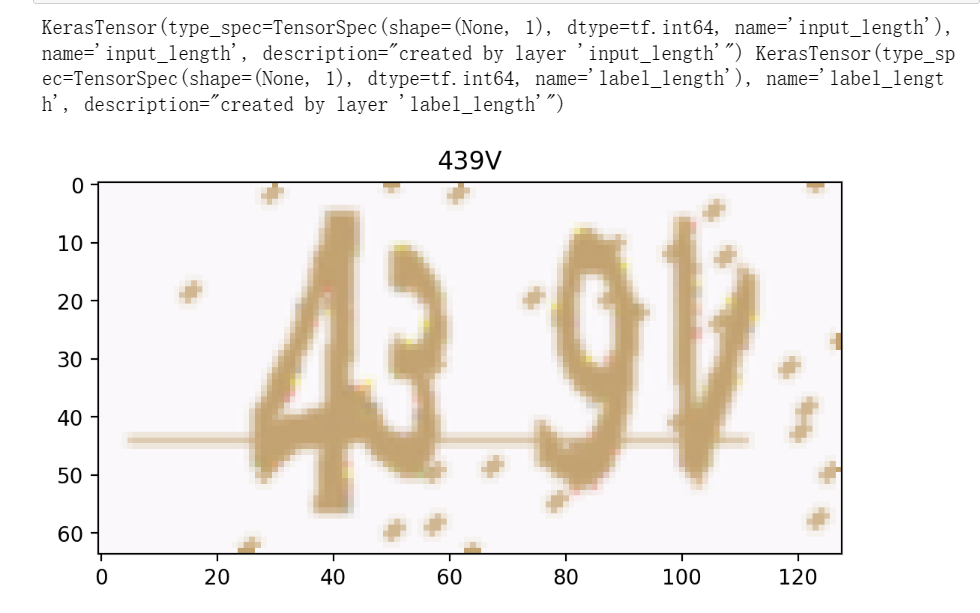

    # 查看生成的图片
    data = CaptchaSequence(characters, batch_size=1, steps=1)
    [X_test, y_test, _, _], _ = data[0]
    plt.imshow(X_test[0])
    plt.title(''.join([characters[x] for x in y_test[0]]))
    print(input_length, label_length)

  • 准确率回调

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    # 准确率回调函数
    from tqdm import tqdm
    def evaluate(model, batch_size=128, steps=20):
        batch_acc = 0
        valid_data = CaptchaSequence(characters, batch_size, steps)
        for [X_test, y_test, _, _], _ in valid_data:
            y_pred = base_model.predict(X_test)
            shape = y_pred.shape
            out = K.get_value(K.ctc_decode(y_pred, input_length=np.ones(shape[0])*shape[1])[0][0])[:, :4]
            if out.shape[1] == 4:
                batch_acc += (y_test == out).all(axis=1).mean()

        return batch_acc / steps

    from tensorflow.keras.callbacks import Callback

    class Evaluate(Callback):
        def __init__(self):
            self.accs = []

        def on_epoch_end(self, epoch, logs=None):
            logs = logs or {}
            acc = evaluate(base_model)
            logs['val_acc'] = acc
            self.accs.append(acc)
            print(f'\nacc:{acc*100:.4f}')

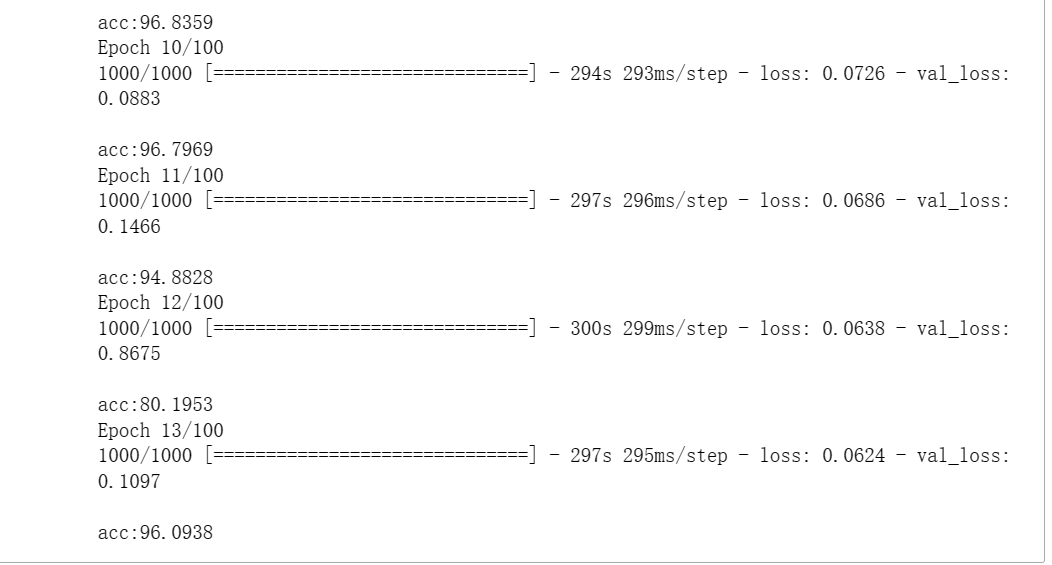

  • 训练模型

    由于使用了EarlyStopping，当训练到第13个epoch时，损失值的减少已经小于1e-3，所以会提前停止训练

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    # 模型训练
    from tensorflow.keras.callbacks import EarlyStopping, CSVLogger, ModelCheckpoint
    from tensorflow.keras.optimizers import *

    train_data = CaptchaSequence(characters, batch_size=128, steps=1000)
    valid_data = CaptchaSequence(characters, batch_size=128, steps=100)

    callbacks = [EarlyStopping(patience=5), Evaluate(),
                 CSVLogger('ctc.csv'), ModelCheckpoint('ctc_best.h5', save_best_only=True)]

    model.compile(loss={'ctc': lambda y_true, y_pred: y_pred}, optimizer=Adam(1e-3, amsgrad=True))

    # 查看GPU设备
    tf.config.experimental.list_physical_devices('GPU')

    with tf.device('GPU:0'):
        model.fit(train_data, epochs=100, validation_data=valid_data, workers=4,
                  callbacks=callbacks)

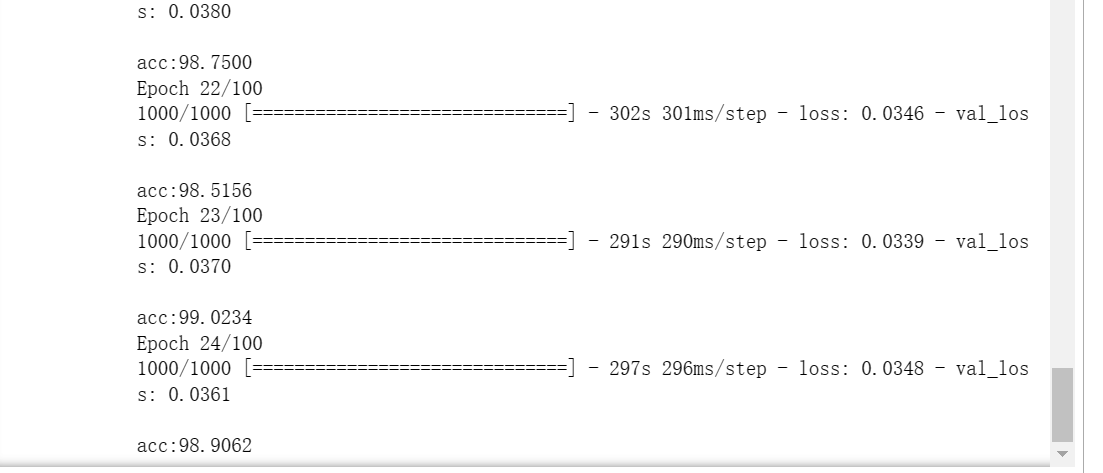

  • 提高精度，再次训练

    这一次在第24epoch时停止了训练

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    # 提前停止了，继续载入参数训练一会
    model.load_weights('ctc_best.h5')

    callbacks = [EarlyStopping(patience=5), Evaluate(),
                 CSVLogger('ctc.csv', append=True), ModelCheckpoint('ctc_best.h5', save_best_only=True)]

    model.compile(loss={'ctc': lambda y_true, y_pred: y_pred}, optimizer=Adam(1e-4, amsgrad=True))

    with tf.device('GPU:0'):
        model.fit(train_data, epochs=100, validation_data=valid_data, workers=4,
                  callbacks=callbacks)

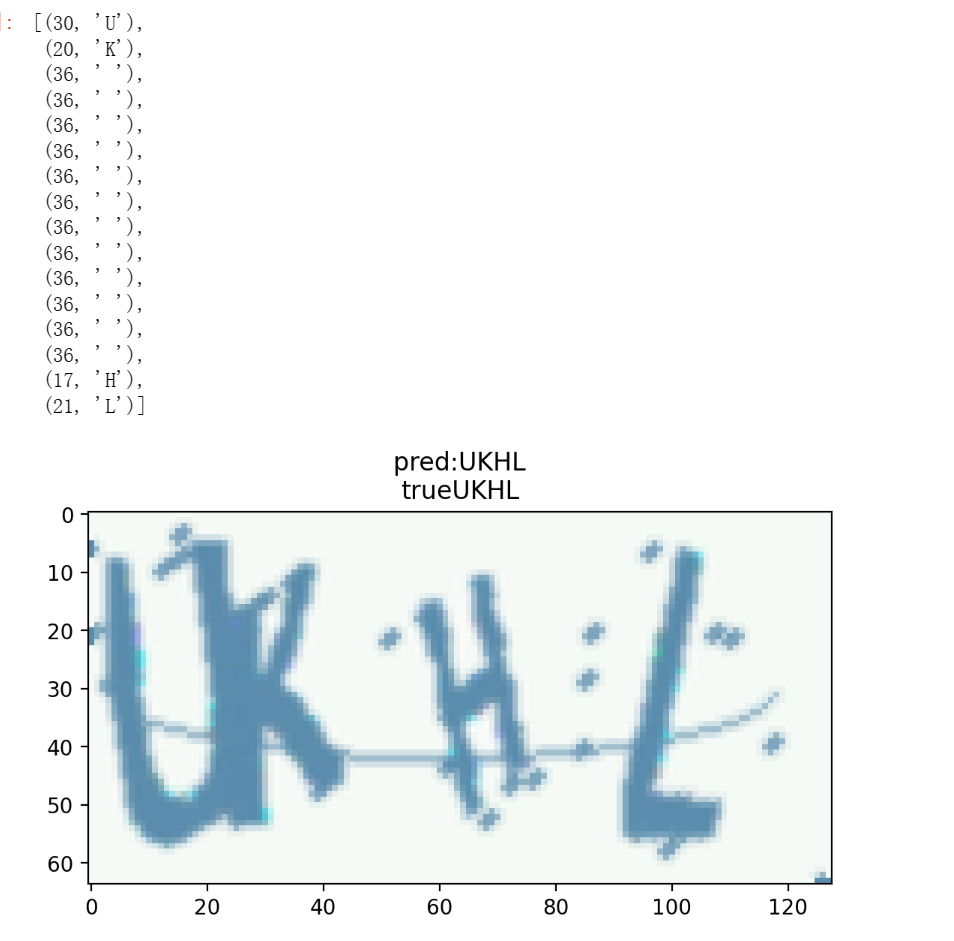

  • 模型测试

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    # 模型测试
    model.load_weights('ctc_best.h5')
    characters2 = characters + ' '
    [X_test, y_test, _, _], _ = data[0]
    y_pred = base_model.predict(X_test)
    out = K.get_value(K.ctc_decode(y_pred, input_length=np.ones(y_pred.shape[0])*y_pred.shape[1], )[0][0])[:, :4]
    out = ''.join([characters[x] for x in out[0]])
    y_true = ''.join([characters[x] for x in y_test[0]])

    plt.imshow(X_test[0])
    plt.title('pred:' + str(out) + '\ntrue' + str(y_true))

    argmax = np.argmax(y_pred, axis=2)[0]
    list(zip(argmax, ''.join([characters2[x] for x in argmax])))

  • 计算总体准确度

    1
    2
    # 计算模型总体准确度
    evaluate(base_model)

  • 保存模型

    1
    2
    # 保存模型
    base_model.save('ctc.h5', include_optimizer=False)

  • 可视化训练曲线

    1
    2
    3

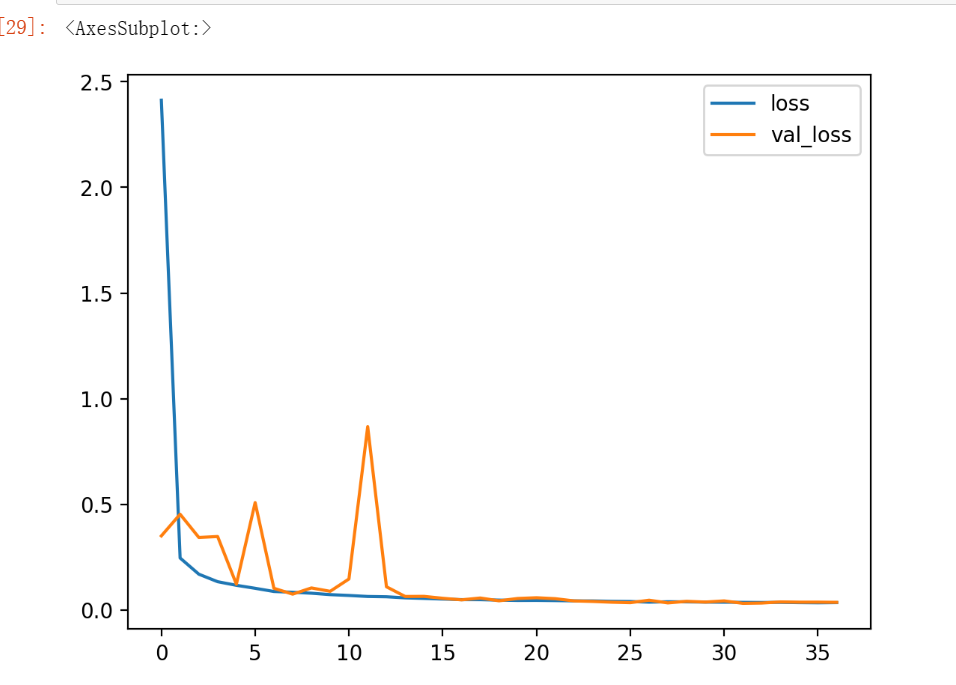

    # 可视化训练曲线
    df = pd.read_csv('ctc.csv')
    df[['loss', 'val_loss']].plot()

4、总结

  • 对LSTM的理解

    Long Short Term Memory networks（以下简称LSTMs），一种特殊的RNN网络，该网络设计出来是为了解决长依赖问题。

    所有循环神经网络都具有神经网络的重复模块链的形式。 在标准的RNN中，该重复模块将具有非常简单的结构，例如单个tanh层。


    LSTMs也具有这种链式结构，但是它的重复单元不同于标准RNN网络里的单元只有一个网络层，它的内部有四个网络层。


  • 对CTC的理解

    CTC（Connectionist Temporal Classifier，联接时间分类器），主要用于解决输入特征与输出标签的对齐问题。由于文字的不同间隔或变形等问题，导致同个文字有不同的表现形式，但实际上都是同一个文字。在识别时会将输入图像分块后再去识别，得出每块属于某个字符的概率（无法识别的标记为特殊字符”-”）。由于字符变形等原因，导致对输入图像分块识别时，相邻块可能会识别为同个结果，字符重复出现。因此，通过CTC来解决对齐问题，模型训练后，对结果中去掉间隔字符、去掉重复字符（如果同个字符连续出现，则表示只有1个字符，如果中间有间隔字符，则表示该字符出现多次。

  • 实验所涉及的问题

    • 问题1：两个实验运用的模型有什么差别？

      第一个实验的模型单纯的运用了卷积神经网络，而第二个实验的模型还用到了LSTM+CTC的机制。

    • 问题2：第二个实验运用的模型更适合哪一类任务？

      第二个实验更适合解决对于序列任务的识别，特征之间有依赖关系的这一类任务。

    • 问题3：LSTM为什么能够适用于这一类任务？

      LSTM网络能通过一种被称为门的结构对细胞状态进行删除或者添加信息。门能够有选择性的决定让哪些信息通过，包含记忆门：决定给细胞状态添加哪些新的信息，遗忘门：选择忘记旧细胞信息的一部分，输出门：决定最终的输出。

    • 问题4：对CTC的理解，CTC有什么作用？

      主要用于解决输入特征与输出标签的对齐问题，在本次实验中，图片识别过程中，会将一些无关的特征识别成空白，同时对输出标签进行定长后再提取最终信息。
